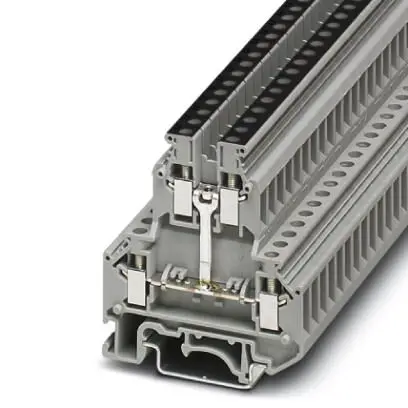

La imagen es representativa - ver especificaciones del fabricante

phoenix contact
Distribuidor Autorizado

2791388

Phoenix Contact

Double-level terminal block - With equipotential bonder - connection method: Screw connection - cross section: 0.2 mm² - 4 mm² ...

+ Ver todo

Ficha de datos Accesorios Notificarme

Cumple con RoHS

embalaje

Certificate of Compliance Guarantee

Descripción +

Double-level terminal block - With equipotential bonder - connection method: Screw connection - cross section: 0.2 mm² - 4 mm² - AWG: 24 - 12 - width: 6.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 - NS 32

Características destacadas del producto:

Aplicaciones potenciales:

Palabras clave de búsqueda: 2791388

Especificaciones +

Atributo del producto

Valor de atributo Seleccionar atributo
Productos Encontrados: 0 Mostrar similares
Proveedor:

Phoenix Contact
Nº de pieza:

2791388
Alias/alias:

UKK 5-PV
Unidad de medida:

Por Each
RoHS:

Yes
HTS:

8536904000
COO:

CN
ECCN:

EAR99
Paquete estándar del proveedor

50
Type:

Double-Level Terminal Block
Mounting:

G DIN Rail,T DIN Rail
Gender:

F
Termination Method:

Screw
Pitch:

N/A
Number of Circuits:

4
Maximum Voltage Rating:

500 V
Maximum Current Rating:

32 A
Wire Size:

12-24 AWG
Operating Temperature:

N/A

Tools/3D Models +

Caja de herramientas EE

Guías de productos +

Ficha de datos

Product Changes +

PCN - 01-Jan-2015 - INTRODUCTION OF 2D BARCODING

PCN - 31-Dec-2022 - Product Change Notification

Garantía de igualación de precios - igualaremos o superaremos el precio publicado por cualquier Competidor autorizado.

Igualación de precios

Este producto está descontinuado, pero aún está disponible.
Este producto NO cumple con RoHS. Ver alternativa
Diferentes opciones de productos disponibles. Ver alternativa
Diferentes opciones de embalaje disponibles. Ver alternativa
Posibles opciones de reemplazo disponibles. Ver alternativa
Item discontinued
Fin del ciclo de vida: Los pedidos finales deben realizarse antes de
Item discontinued

Este producto ya no se fabrica, pero puede haber alternativas. Te podemos ayudar, Contáctenos.

Garantía de igualación de precios

We’ll meet or beat any authorized competitor’s published price for this part.

En stock: 101

Puede enviar inmediatamente

A la orden:

Stock del fabricante:

0 puede enviar

Pedido Mínimo:

Disponible en menos de un minuto:

MOQ para cantidad agotada:

Incremento de pedidos:

Plazo de entrega de fábrica:

5 Weeks puede enviar 12/31/24

AÑADIR A LA CESTA

Qty

Precio por unidad

$18.43

$13.57

$12.88

100

$12.35

250

$12.17

500

$11.99

1.000 +

$11.81

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size OnlineComponents.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Haga clic para obtener una cotización

Inicia sesión Para desbloquear precios especiales

Orden de programación

Puede programar las cantidades de lanzamiento y las fechas de envío en el carrito de compras.

Accesorios

ATP-UKK 3/5

Partition plate - length: 64 mm - width: 2.5 mm - height: 56 mm - color: gray

CLIPFIX 35-5

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

D-UKK 3/5

End cover - length: 56 mm - width: 2.5 mm - height: 52 mm - color: gray

EB 3- 6

Insertion bridge - pitch: 6.2 mm - number of positions: 3 - color: gray

DG-UKK 3/5

Spacer plate - to compensate for level offsets - length: 56 mm - width: 2.5 mm - height: 5 ...

E/UK 1

End clamps - for supporting the ends of double-level and three-level terminal blocks - wid ...

EB 2- 6

Insertion bridge - pitch: 6.2 mm - number of positions: 2 - color: gray

E/UK

End clamp - width: 9.5 mm - height: 35.3 mm - material: PA - length: 50.5 mm - Mounting on ...

DP-UKK 3/5

Spacer plate - to compensate for level offsets - length: 56 mm - width: 2.5 mm - height: 2 ...

FBI 10- 6

Fixed bridge - pitch: 6.2 mm - number of positions: 10 - color: silver

FBI 100- 6

Fixed bridge - pitch: 6.2 mm - number of positions: 100 - color: silver

FBI 20- 6

Fixed bridge - pitch: 6.2 mm - number of positions: 20 - color: silver

SBS 6:UNBEDRUCKT

Marker card - Card - white - unlabeled - can be labeled with: CMS-P1-PLOTTER - mounting ty ...

NS 32 PERF 2000MM

DIN rail perforated - G profile - width: 32 mm - height: 15 mm - acc. to EN 60715 - materi ...

NS 32 UNPERF 2000MM

DIN rail - unperforated - G profile - width: 32 mm - height: 15 mm - acc. to EN 60715 - ma ...

NS 35/15 WH PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 CU UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

PSB 3/10/4

Female test connector - color: silver

PSBJ 3/13/4

Female test connector - color: silver

PS-UKK/E

Test plugs - color: red

RPS

Reducing plug - color: gray

WS 3- 6

Warning plate - with 2 plastic screws - across 3 terminal blocks - pitch 6 mm

WS 4- 6

Warning plate - with 2 plastic screws - across 4 terminal blocks - pitch 6 mm

WS 5- 6

Warning plate - with 2 plastic screws - across 5 terminal blocks - pitch 6 mm

CLIPFIX 35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

E/NS 35 N

End clamp - width: 9.5 mm - color: gray

NS 35/15 CAP

DIN rail end piece - for DIN rail NS 35/15

ZB 6,LGS:GLEICHE ZAHLEN

Zack marker strip, Strip, white, labeled, can be labeled with: CMS-P1-PLOTTER, Printed hor ...

IS-K 4

Bridge bar isolator - color: gray

ISSBI 10- 6

Jumper - pitch: 6 mm - number of positions: 10 - color: silver

KSS 6

Short-circuit connector - pitch: 6 mm - number of positions: 2 - color: black

UC-TM 6 CUS

Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...

PS-UKK 5

Test plugs - color: red

NS 35/15 PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

NS 35/15 ZN PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 ZN UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

NS 35/15 AL UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

UCT-TM 6

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...

ZB 6:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

ZB 6 CUS

Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...

TS-KK 3

Separating plate - length: 14 mm - width: 0.5 mm - height: 16 mm - color: gray

NS 35/15 WH UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

UC-TM 6

Terminal Block Marker - White - Blank - Printable - For 6.2mm W TB - 80/Sht

KSS 3- 6

Short-circuit connector - pitch: 6 mm - number of positions: 3 - color: black
