206044-1

TE Connectivity / AMP Brand

AMP’s Special Series 1 Sealed CPC Receptacles come with a pre-installed, bonded peripheral seal. The housing is composed of bl ...

+ see all

Datasheet Accessories Notify Me

RoHS Compliant

Bag Packaging

Certificate of Compliance Guarantee

Description +

AMP’s Special Series 1 Sealed CPC Receptacles come with a pre-installed, bonded peripheral seal. The housing is composed of black thermoplastic that is UL 94V-0 rated and sealed with gray elastomer. All of AMP’s sealed connectors meet major industrial standards and were designed specifically to meet the growing demand for an economical environmentally sealed connector. The sealed CPC connectors use the new AMO POWERBAND precision formed high current contacts and have an operating temperature range of -50°C to +125°C.

Product Highlights:

Connector
Number of Positions = 14
Plug
For Use With Pin Contacts
Not Preloaded

Potential Applications:

Search Keywords: 2060441

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

TE Connectivity / AMP Brand
Part No:

206044-1
Unit of Measure:

Per Each
RoHS:

Yes
HTS:

8538906000
COO:

MX
ECCN:

EAR99
Supplier Standard Pack

100
Type:

Sealed CPC
Gender:

PL
Body Orientation:

Straight
Mounting:

Cable Mount
Shell Size / Insert Arrangement:

17-14
Number of Contacts:

14
Contact Gender:

Pin
Contact Plating:

N/A
Termination Method:

Crimp
Maximum Current Rating:

N/A
Maximum Voltage Rating:

N/A

Tools/3D Models +

3D PDF

EE ToolBox

Product Guides +

Datasheet

Product Specification - Circular Plastic Connectors (CPC)

Agency Approval Document - CIRCULAR PLASTIC CONNECTOR REPORT

Agency Approval Document - CPC REPORT

Agency Approval Document - CSA_CERT_1505185_LR_7189_C1

Instruction Sheet - Sealed Circular Platic Connectors

Instruction Sheet - Circular Plastic Connectors (CPC)

Learn more about TE Connectivity/AMP Two-Piece Sealed Circular Plastic Connectors Series 1

Product Changes +

PCN - 13-Apr-2022 - Process Change Notification

PCN - 10-Nov-2021 - Delete The Existing Amp Logo Molded Into The Housing

PCN - 08-Sep-2021 - Te Eliminated The Marking Of The Part Number, Date Code, Mexico And Amp

PCN - 15-Apr-2015 - Manufacturing Location Change

PCN - 15-Apr-2015 - Manufacturing Location Change(S)

PCN - 10-Nov-2021 - Delete The Existing Amp Logo Molded Into The Housing

PCN - 13-Apr-2022 - Process Change Notification

PCN - 08-Sep-2021 - TE Eliminated The Marking Of The Part Number, Date Code, Mexico And Amp

Price Match Guarantee - we'll meet or beat any authorized Competitor's published price.

Price Match

This product is discontinued, but still in stock.
This product is NOT RoHS Compliant. See alternative
Different product options available. See alternative
Different packaging options available. See alternative
Possible Replacement options available. See alternative
Item discontinued
End of Life: Final orders must be placed by
Item discontinued

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

Price Match Guarantee

We’ll meet or beat any authorized competitor’s published price for this part.

In Stock: 13,700

Can Ship immediately

On Order:

Manufacturer Stock:

0 can ship

Minimum Order:

Available in less than min:

MOQ for out of Stock Qty:

Order Increment:

Factory Lead-Time:

13 Weeks can ship 2/24/25

ADD TO CART

Qty

Unit Price

$7.77

$4.53

$4.41

100

$4.34

300

$4.28

500

$4.21

1,000

$4.15

2,500 +

$4.09

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size OnlineComponents.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

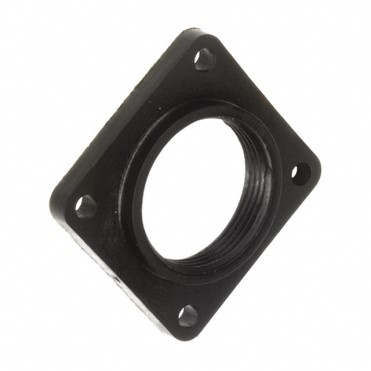

Accessories
