DS2E-S-DC24V by panasonic electronic components
Image is representational - see mfr. specs

DS2E-S-DC24V

Panasonic Electronic Components

Signal Relay 24VDC 3A DPDT(20x9.9x9.9)mm THT

+ see all

Datasheet Accessories

RoHS Compliant
Discontinued & Replaced
Tube Packaging
Certificate of Compliance Guarantee
Description +
Signal Relay 24VDC 3A DPDT(20x9.9x9.9)mm THT
Search Keywords: DS2ESDC24V
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Panasonic Electronic Components
  • Part No:
    DS2E-S-DC24V
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536410020
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    50
  • Relay Construction:
    Non-Latching12534
  • AC Coil Voltage:
    N/A
  • DC Coil Voltage:
    24 V
  • Contact Arrangement:
    DPDT12514
  • Maximum Current Rating:
    3 A
  • Mounting:
    Through Hole12526
  • Termination Style:
    PC Pin12536
  • Operating Temperature:
    -40 to 70 °C
  • Coil Resistance:
    2.88 KOhm
Tools/3D Models +
  • Item discontinued
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
RECOMMENDED REPLACEMENT

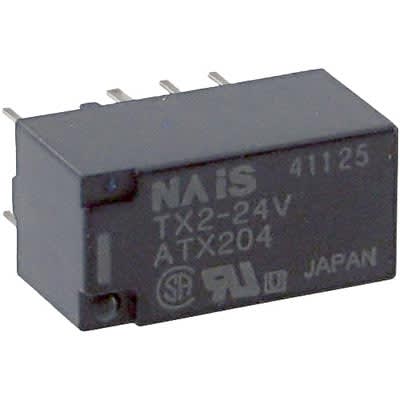

TX2-24V
TX2-24V
VIEW PRODUCT
Signal Relay - 24 VDC - DPDT - 2 A - TX Series - Through Hole -
