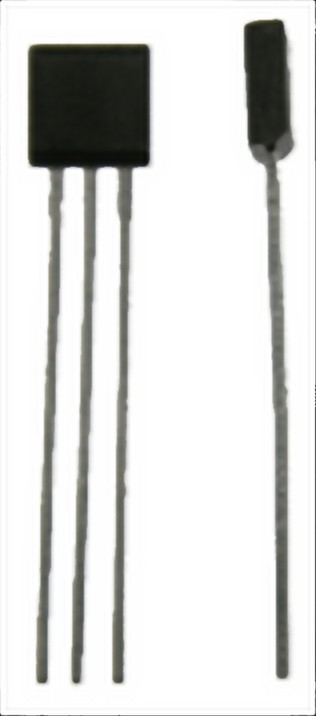

OHS3120U by optek technology/tt electronics
Image is representational - see mfr. specs

OHS3120U

Optek Technology/TT Electronics

Hall-Effect Sensor - 4.5 to 24 V - TO92 - Side Sensing - Unipolar non-latching

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
Hall-Effect Sensor - 4.5 to 24 V - TO92 - Side Sensing - Unipolar non-latching
Search Keywords: OHS3120U
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Optek Technology/TT Electronics
  • Part No:
    OHS3120U
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8542390001
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1000
  • Magnetic Type:
    Unipolar
  • Maximum Output Current:
    25 mA
  • Mounting:
    PCB Through Hole
  • Minimum Magnetic Sensor Release Point:
    25 Gs
  • Maximum Magnetic Sensor Operating Point:
    450 Gs
  • Output Type:
    Sink
  • Output Driver:
    NPN
  • Product Type:
    Digital
  • Dimension:
    4.62 x 1.55 x 4.62 mm
  • Typical Operating Supply Voltage:
    4.5 to 24 V
  • Termination Type:
    PC Pins
  • Operating Temperature:
    -40 to 125 °C
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 55
Can Ship immediately You may purchase in-stock quantity up to 55
MOQ for In Stock Qty:
1000
Available in less than min:
55
MOQ for out of Stock Qty:
1000
Order Increment:
1000
22 Weeks can ship 3/12/25
ADD TO CART
Qty
Unit Price
1
$6.60
1,000
$6.00
2,000
$5.70
4,000
$5.41
8,000 +
$5.14
Suppliers Standard Package
Click for Quote
Log in to unlock special pricing
