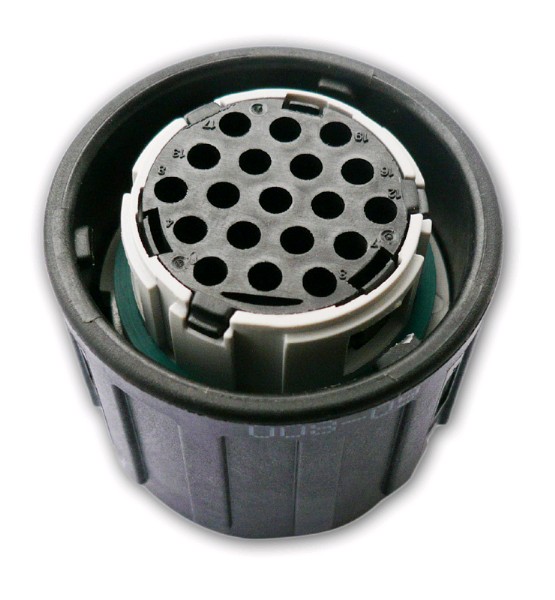

Image is representational - see mfr. specs

itt cannon
Authorized Distributor

APD-2BS19S

ITT CANNON

grey (RAL 7036) Plug 19-way

+ see all

Accessories Notify Me

RoHS Compliant

Packaging

Certificate of Compliance Guarantee

Description +

grey (RAL 7036) Plug 19-way

Product Highlights:

Potential Applications:

Search Keywords: APD2BS19S

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

ITT CANNON
Part No:

APD-2BS19S
Alias/AKA:

121583-0121
Unit of Measure:

Per Each
RoHS:

Yes
HTS:

8538906000
ECCN:

EAR99
Supplier Standard Pack

50
Series:

APD 19-way
Insulator Resistance:

10 MΩ min.
Industrial Climate:

SO2, 0,67 %
Connector Type:

Plug
Dynamic Impact:

Free fall with cable (EN 61984 Sec. A9, height 1m)
Durability Rating:

50 Mating Cycles
Temperature Range:

-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
Sealing Material:

FKM
Housing Material:

PBT GF
Vibration Resistance:

Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
Coding (Mechanical Keying And Visual Color Coding):

Code 2 - grey (RAL 7036)
Humidity Range:

up to 95 %
Fluid Compatibility:

Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Gender:

Socket
Static Load:

250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)
Voltage Proof:

1000 VAC, 60 seconds
Salt Spray:

96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Coupling Nut Material:

PA 46 GF
Operating Voltage:

48 VDC
Sealing:

IP 67 (DIN EN 60529)
Coupling Torque:

3.5 Nm max
Operating Current:

see derating curve (catalog)
Contact Resistance:

5 mΩ max

Tools/3D Models +

EE ToolBox

Product Guides +

Component Moment: ITT APD series

Learn more about ITT Cannon APD Connector Series

Price Match Guarantee - we'll meet or beat any authorized Competitor's published price.

Price Match

This product is discontinued, but still in stock.
This product is NOT RoHS Compliant. See alternative
Different product options available. See alternative
Different packaging options available. See alternative
Possible Replacement options available. See alternative
Item discontinued
End of Life: Final orders must be placed by
Item discontinued

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

Price Match Guarantee

We’ll meet or beat any authorized competitor’s published price for this part.

Backordered, But More coming soon

On Order:

Manufacturer Stock:

0 can ship

Available in less than min:

MOQ for out of Stock Qty:

Order Increment:

Factory Lead-Time:

12 Weeks can ship 2/14/25

Backorder

Qty

Unit Price

$31.20

$19.20

$15.20

100 +

$14.90

Suppliers Standard Package
