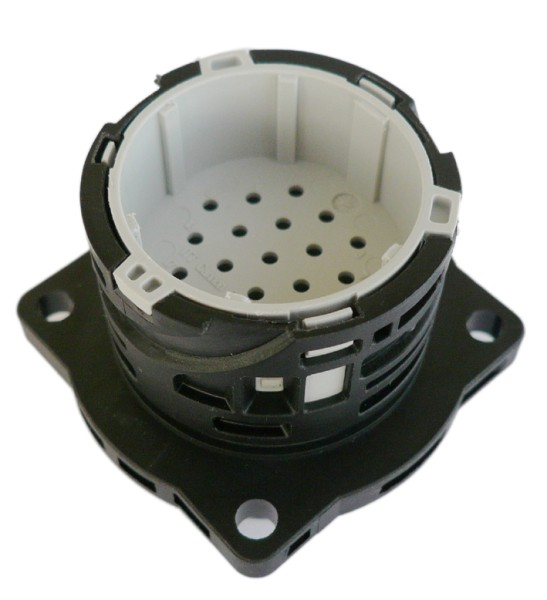

APD-2AP19S by itt cannon
Image is representational - see mfr. specs

APD-2AP19S

ITT CANNON

grey (RAL 7036) Flange Receptacle 19-way

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance Guarantee
Description +
grey (RAL 7036) Flange Receptacle 19-way
Search Keywords: APD2AP19S
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    ITT CANNON
  • Part No:
    APD-2AP19S
  • Alias/AKA:
    121583-0122
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • COO:
    PL
  • ECCN:
    EAR99
  • Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    40
  • Operating Voltage:
    48 VDC
  • Contact Resistance:
    5 mΩ max
  • Housing Material:
    PBT GF
  • Operating Current:
    see derating curve (catalog)
  • Static Load:
    250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)
  • Vibration Resistance:
    Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
  • Dynamic Impact:
    Free fall with cable (EN 61984 Sec. A9, height 1m)
  • Sealing:
    IP 67 (DIN EN 60529)
  • Coding (Mechanical Keying And Visual Color Coding):
    Code 2 - grey (RAL 7036)
  • Series:
    APD 19-way
  • Voltage Proof:
    1000 VAC, 60 seconds
  • Salt Spray:
    96 h, 35 °C (ISO 15170-2, Sec. 6.2)
  • Connector Type:
    Flange Receptacle
  • Sealing Material:
    FKM
  • Gender:
    Pin
  • Fluid Compatibility:
    Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
  • Coupling Nut Material:
    PA 46 GF
  • Coupling Torque:
    3.5 Nm max
  • Insulator Resistance:
    10 MΩ min.
  • Temperature Range:
    -40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
  • Industrial Climate:
    SO2, 0,67 %
  • Humidity Range:
    up to 95 %
  • Durability Rating:
    50 Mating Cycles
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 20
Ships today, if you order in
MOQ for out of Stock Qty:
20
9 Weeks can ship 1/24/25
ADD TO CART
Qty
Unit Price
1
$37.93
5
$37.36
10
$36.80
20
$36.25
40
$22.31
60
$17.67
80 +
$17.31
