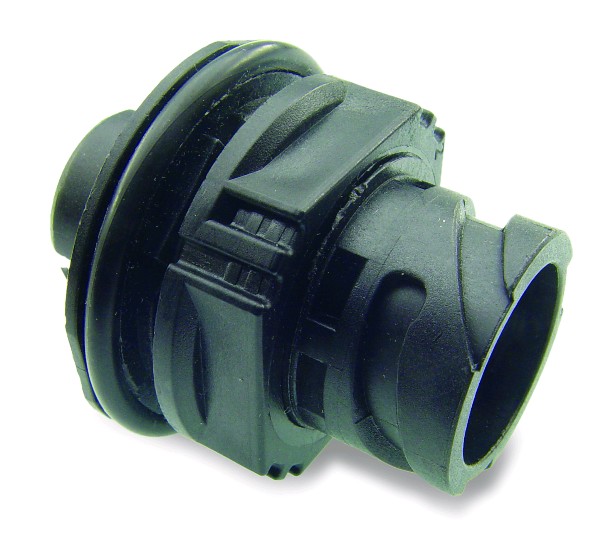

APD-1CPH8-2-14 by itt cannon
Image is representational - see mfr. specs

APD-1CPH8-2-14

ITT CANNON

blue (RAL 5012) High Power Jam Nut Receptacle, 2-way

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance Guarantee
Description +
blue (RAL 5012) High Power Jam Nut Receptacle, 2-way
Search Keywords: APD1CPH8214
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    ITT CANNON
  • Part No:
    APD-1CPH8-2-14
  • Alias/AKA:
    121583-0086
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8538906000
  • COO:
    PL
  • ECCN:
    EAR99
  • Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    100
  • Temperature Range:
    -40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
  • Series:
    APD High Power 2-way
  • Coupling Torque:
    2 Nm max
  • Insulator Resistance:
    10 MΩ min.
  • Housing Material:
    PBT GF
  • Contact Resistance:
    2 mΩ max
  • Operating Current:
    see derating curve (catalog)
  • Humidity Range:
    up to 95 %
  • Vibration Resistance:
    Sine, 100 m/s², 3 axis, 24h, RT (EN 60512)
  • Coding (Mechanical Keying And Visual Color Coding):
    Code 1 - blue (RAL 5012)
  • Sealing:
    IP 67 (DIN EN 60529)
  • Fluid Compatibility:
    Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
  • Static Load:
    350 N (ISO 15170-2, Sec. 4.6)
  • Sealing Material:
    HNBR (alternative FKM)
  • Connector Type:
    Jam Nut Receptacle
  • Operating Voltage:
    48 VDC
  • Coupling Nut Material:
    PA 66 GF
  • Salt Spray:
    96 h, 35 °C (ISO 15170-2, Sec. 6.2)
  • Industrial Climate:
    SO2, 0,67 %
  • Durability Rating:
    50 Mating Cycles
  • Gender:
    Pin
  • Voltage Proof:
    1000 VAC, 60 seconds
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
Backordered, But More coming soon
MOQ for out of Stock Qty:
125
9 Weeks can ship 1/27/25
Backorder
Qty
Unit Price
125
$22.51
250
$11.92
375
$8.39
500 +
$8.22
