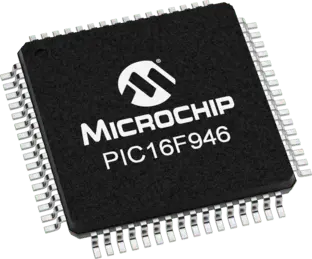

PIC16F946-I/PT by microchip technology
Image is representational - see mfr. specs

PIC16F946-I/PT

Microchip Technology

PIC 16 microcontroller - MCU 8 bit - RISC architecture - 35 Instructions - Interrupts 10 - 2 V to 5.5 V - Pins: 64 - Package t ...

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
TRAY Packaging
Certificate of Compliance Guarantee
Description +
PIC 16 microcontroller - MCU 8 bit - RISC architecture - 35 Instructions - Interrupts 10 - 2 V to 5.5 V - Pins: 64 - Package type: TQFP 64 – Speed 20MHz - Flash 8 K words – SRAM 336 Bytes – EEPROM 256 Bytes - I/O: 53 – A/D: 10 bit with 08 channels – 02 x
Search Keywords: PIC16F946IPT
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Microchip Technology
  • Part No:
    PIC16F946-I/PT
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8542310015
  • COO:
    TH
  • ECCN:
    EAR99
  • Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    160
  • Number of Programmable I/Os:
    53
  • ADC Resolution:
    10 bit
  • Operating Temperature:
    -40 to 85 °C
  • RAM Size:
    336 B
  • Program Memory Type:
    Flash
  • Program Memory Size:
    14 KB
Tools/3D Models +
Product Guides +

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 220
Can Ship immediately
Manufacturer Stock:
234,560 can ship
Minimum Order:
5
4 Weeks can ship 12/11/24
ADD TO CART
Qty
Unit Price
5
$4.889
25
$4.291
160
$4.224
320
$4.182
640
$4.140
1,120
$4.099
2,560 +
$4.058
Suppliers Standard Package
Click for Quote
Log in to unlock special pricing
Item may be subject to tariff fee if shipping within the United States
Packaged Differently
alternative Part Image
In Stock:
0
Minimum Order:
50
