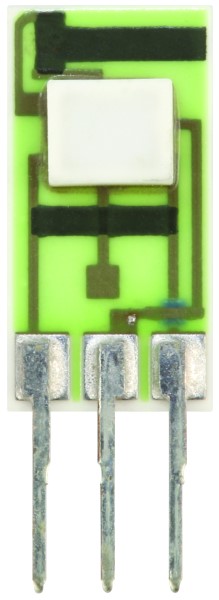

Image is representational - see mfr. specs

Honeywell
Authorized Distributor

SS94A1F

Honeywell

Honeywell Hall-effect Linear Position Sensor ICs: SS94 Series, High Sensitivity Ratiometric Linear Sensor IC, 3-pin, Through-h ...

+ see all

Datasheet Accessories Notify Me

RoHS Compliant

Box Packaging

Certificate of Compliance Guarantee

Description +

Honeywell Hall-effect Linear Position Sensor ICs: SS94 Series, High Sensitivity Ratiometric Linear Sensor IC, 3-pin, Through-hole ceramic substrate, 25 mV/G at 8 Vdc supply voltage

Product Highlights:

Single current sinking or current sourcing linear output
Improved temperature stability
Standard mounting centers
Laser trimmed thin film and thick film resistors minimize sensitivity variations and compensate for temperature variations

Potential Applications:

Ignition timing
Power sensing
Valve position
Robotics control
Current sensing
Linear or rotary motion detection
Length measurement
Flow sensing
RPM sensing
Security systems

Search Keywords: SS94A1F

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

Honeywell
Part No:

SS94A1F
Unit of Measure:

Per Each
RoHS:

Yes
HTS:

85332100
COO:

MX
ECCN:

EAR99
Output Type:

Analog(Voltage)
Mechanical Travel:

N/A
Type:

Linear
Mounting:

PCB Through Hole
Product Type:

Hall Effect
Resolution:

N/A
Operating Temperature:

-40 to 125 °C
Dimension:

7.6 x 1.8 x 15.2 mm
